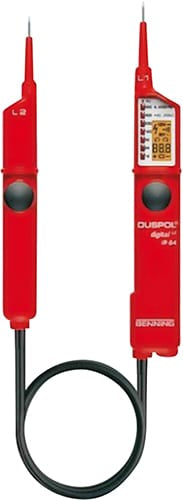

Duspol digital LC VDE GS Art. No. 702

• two-pole voltage tester VDE GS
• Tested and approved according to the internationally valid standard
  IEC 61243-3 (DIN VDE 0682-401)
• CAT IV 600 V or CAT III 1000 V
• Protection rating: IP 65 (dust-proof/jet water-protected)
  6 – first digit:
  Protection against access to hazardous parts
and protection against solid foreign objects, dust-proof
5 – second digit:
Protected against splashing water.
• Can also be used in precipitation.
• Nominal voltage range: 1 V to AC 1000 V / DC
• Internal resistance, measuring circuit: PTC 15 kΩ ≥ 360 kΩ
• Internal resistance, load circuit
• both push buttons activated!: approx. 3.7 kΩ (150 kΩ)
• Current consumption, measuring circuit: max. < 3.5 mA (AC/DC)
• Polarity display: LCD Symbol */-
• Voltage display, continuous 6 – 750 V
• Voltage range I: up to approx. 80 V (88.8)
• Voltage range II: from approx. 80 V (888)
• max. display error: ± 2 % of full scale value voltage range,
  20 – 150 Hz sine or DC, ELV Un – 15 %
• Nominal frequency range f: 0 to 150 Hz-
• Phase and rotating field direction display:≥ Un 230 V, 50/60 Hz
• Vibration motor, start-up: ≥ Un 230 V
• Test current, continuity test: max. 2 µA
• Test range, continuity resistance: 0 – 200 kΩ
• Sound level acoustic signal: 55 dB
• max. permissible duty cycle: ED = 30 s (max. 30 sec.), 240 s pause
• Device activation at measuring voltage: ≥ 6 V
• HOLD function (AC ≤ 250 V, DC ≤ 750 V) Activation by pressing button ≥ 1.5 s
• Battery: 2 x Micro, LR03/ AAA (3 V)
• Connecting cable length: approx. 900 mm
• Operating and storage temperature range: -10 ° C to + 55 ° C (climate category N)
• relative humidity: 20 % to 96 % (climate category N)
• Recovery times (thermal protection):

  Voltage / Time:
  230 V / 30 s
  400 V / 9 s
  750 V / 2 s

CAUTION: The voltage tester is not functional when the battery is empty! A voltage test without a battery is possible from a voltage of ≥ 50 V. Please remove the batteries from the device for long-term storage!
