Isostandmatte Kl.4 10-Meter Rolle Art. Nr. 607
Isostandmatte Kl.4 10-Meter Rolle Art. Nr. 607
Price is only visible for activated customers
Isostandmatte Kl.4 10-Meter Rolle Art. Nr. 607
Please contact us for a product inquiry via our contact form.
Properties
Properties

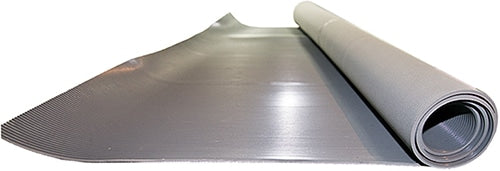

The Isostand insulating mat Class 4 for location insulation
Working voltage: 36,000 V, Test voltage: 40,000 V, Withstand voltage: 50,000 V
It complies with the standard IEC 61111:2009 Class 4 and is certified according to the accident prevention regulations of the professional associations.
The mat has a thickness of 4.5 mm and is made of high-quality NR/SBR material.
It is ribbed on one side and has a fabric-patterned underside.
With a hardness of ± 70 Shore A ± 5, a tensile strength of >= 5 Mpa and an elongation at break of >= 250%, it is particularly robust and durable.
Temperature range: -25°C to + 70°C.
Of course, stamped with the corresponding symbols of the standard:
Double triangle, DIN-EN-VDE standard, class, working voltage, test voltage, withstand voltage.
Technical data
Technical data
- IEC 61111:2009 Klasse 4
- Arbeisspannung:36.000 V, Prüfspannung:40.000 V, Widerstand:50.000 V
- Gemäß der Unfallverhütungsvorschriften (PSA) der Berufsgenossenschaften
- DIN EN 60243-1 VDE 0303-21
- Stärke: 4,5 mm
- Farbe: Grau
- Qualität: NR/SBR, einseitig gerieft
- Unterseite stoffgemustert
- Härte ± 70 Shore A ± 5 (DIN 53505)
- Zugfestigkeit >= 5 Mpa (DIN 53504)
- Reißdehnung >= 250 % (DIN 53504)
- Temperaturbereich -25 C bis +70 C
Selbstverständlich mit den entsprechenden Zeichen der Norm gestempelt:
Doppeldreieck, DIN-EN-VDE-Norm, Klasse, Arbeitsspannung, Prüfspannung, Widerstand.
| Abm. / mm | Gewicht / g | Norm |
|---|---|---|
| 1.000 x 10.000 | 60.000 |  |
Working voltage: 36,000 V, Test voltage: 40,000 V, Resistance: 50,000 V
It complies with the standard IEC 61111:2009 Class 4 and is certified according to the accident prevention regulations of the professional associations.
The mat has a thickness of 4.5 mm and is made of high-quality NR/SBR material.
It is ribbed on one side and has a fabric-patterned underside.
With a hardness of ± 70 Shore A ± 5, a tensile strength of >= 5 Mpa, and an elongation at break of >= 250%, it is particularly robust and durable.
Temperature range: -25°C to + 70°C.
Of course, stamped with the corresponding symbols of the standard:
Double triangle, DIN-EN-VDE standard, class, working voltage, test voltage, resistance
