Deep Socket (extra long) 1000 V Art. No. 322
Deep Socket (extra long) 1000 V Art. No. 322
Price is only visible for activated customers
Deep Socket (extra long) 1000 V Art. 322-10
Couldn't load pickup availability
Properties
Properties
- with 3/8" - square drive
- 12-point size
- Length: 125 mm
- made of chrome vanadium steel
- forged
- oil-hardened
- DIN 7448
- with internal grooves for accommodating locking devices on the operating tools
- Length: approx. 125 mm
- manufactured according to the latest standard EN 60900 / IEC 60900
Technical data
Technical data
Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified, and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and
withstands the latest PAH test.
| Dim. / mm | Weight / g | Standard |
|---|---|---|
| 10 | 180 |  |
| 11 | 185 | |
| 12 | 200 | |
| 13 | 210 | |
| 14 | 220 | |
| 15 | 220 | |
| 17 | 240 | |
| 19 | 260 | |
| 22 | 280 | |

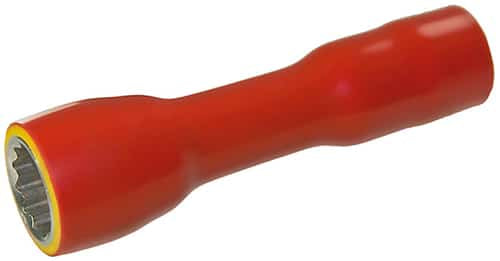

The Deep Socket (extra long) is made of high-quality chrome vanadium steel and oil-hardened.
It has a 12-point size and a 3/8" square drive.
The length is 125 mm and it features internal grooves for accommodating locking devices.
Tools marked with the double triangle are tested with a test voltage of 10,000 volts, are certified and are suitable for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and the double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
