Long Nose Pliers bent 1000 V coated working Head Art. No. 138
Long Nose Pliers bent 1000 V coated working Head Art. No. 138
Price is only visible for activated customers
Long Nose Pliers bent 1000 V coated working Head Art. No. 138
Couldn't load pickup availability
Properties
Properties
- High-quality 2-color multi-layer insulation "Made in Germany"
- the additionally coated working head offers additional protection against bridging
- the highly flexible material is firmly bonded to the metal
and allows an opening angle of 30 degrees - DIN ISO 5745
- oil-hardened, cutting edges inductively hardened
- for hard and soft wire
- bent jaws
- forged from tool steel
- manufactured according to the latest standard EN 60900/IEC 60900
Technical data
Technical data
Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable
for working on live parts up to 1,000 volts.
All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900 / EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and
withstands the latest PAH test.
| Size / mm | Weight / g | Standard |
|---|---|---|
| 240 | 390 |  |

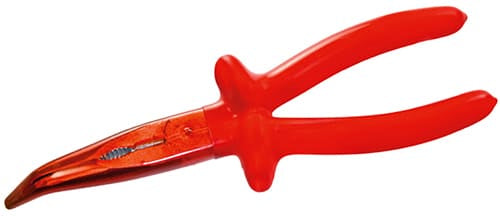

The Art. No. 138 Bent Long Nose Pliers 1000 V with coated working head are high-quality pliers for working on live parts up to 1000 volts.
The coated working head offers additional protection against bridging.
The highly flexible material is firmly bonded to the metal and allows an opening angle of 30 degrees.
Manufactured according to DIN ISO 5745, oil-hardened, with induction-hardened cutting edges.
For hard and soft wire with bent jaws.
Multiple dip-insulated.
All safety tools are stamped with the corresponding symbols of the standard:
VDE/EN60900/IEC 60900 with VDE / GS as well as with article number, dimension, year of manufacture, manufacturer, 1000 V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation and withstands the latest PAH test.
