ISOTOOLS GmbH & Co. KG

VDE-Umschaltknarre 1000 V Art. Nr. 300

VDE-Umschaltknarre 1000 V Art. Nr. 300

Price is only visible for activated customers

VDE-Umschaltknarre 1000 V Art. Nr. 300-1/2

Variant

Please contact us for a product inquiry via our contact form.

Properties

  • patented push-button locking system
    to prevent unintentional release of the socket inserts
  • very easy handling
  • made of chrome vanadium steel
  • reversible right / left drive
  • also suitable for left-handers
  • square drive according to DIN 3120/1174 with ball lock
    for positive-locking connection
  • DIN 7449
  • fully insulated according to DIN IEC 60900
  • with a reversible 32-tooth ratchet head
  • with square drive for 1/2" or 3/8" socket inserts
  • torque up to 500 Nm

Technical data

Werkzeuge mit Doppeldreieck sind mit einer Prüfspannung von 10.000 Volt geprüft, zertifiziert und sind zum Arbeiten an unter Spannung stehenden Teilen bis 1.000 Volt geeignet.

Alle Sicherheitswerkzeuge sind mit den entsprechenden Zeichen der Norm gestempelt:
VDE / IEC 60900 / EN 60900 oder mit VDE/GS sowie mit Artikelnummer, Abmessung, Herstellungsjahr, Hersteller, 1000V und Doppeldreieck bzw. VDE-Zeichen.
Der hochwertige Isolierkunststoff ist konform mit der REACH-Verordnung
und hält der neuesten PAK-Prüfung stand.

Zoll / mmGewicht / gNorm
3/8″ - 190370
1/2″ - 260750

View full details

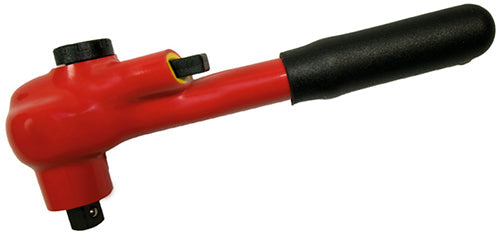

The VDE GS 1000 V Reversible Ratchet is a multiple dip-insulated ratchet made of chrome vanadium steel with a patented push-button locking system
that prevents unintentional release of the socket inserts.
It can be used for both clockwise and counter-clockwise drive and is also suitable for left-handers.
The ratchet features a square drive according to DIN 3120/1174 with a ball lock.
It is equipped with a reversible 32-tooth ratchet head and a square drive for 1/2" or 3/8" socket inserts.
The maximum torque is 500 Nm (positive-locking system according to IEC 60900).

Tools with the double triangle symbol are tested and certified with a test voltage of 10,000 volts and are suitable for working on live parts up to 1,000 volts.

All safety tools are stamped with the corresponding symbols of the standard:
IEC 60900/EN 60900 or with VDE/GS as well as with article number, dimension, year of manufacture, manufacturer, 1000V and double triangle or VDE symbol.
The high-quality insulating plastic is compliant with the REACH regulation
and withstands the latest PAH test.
